What is The "Click" System?
Click System is an innovative, concealed mechanical installation system developed by Joann Group to facilitate the installation of exterior cladding facades using materials such as HPL, ceramic, and stone in a flexible and highly efficient manner.
It utilizes “Click & Lock” technology, which reduces installation time and improves precision.
This system provides a durable and elegant solution for installing facades without any visible elements on the exterior surface, giving the facade a modern look and durability.
A McDonald’s Branch – Beirut – Lebanon (HPL Cladding)
Components of the Click System

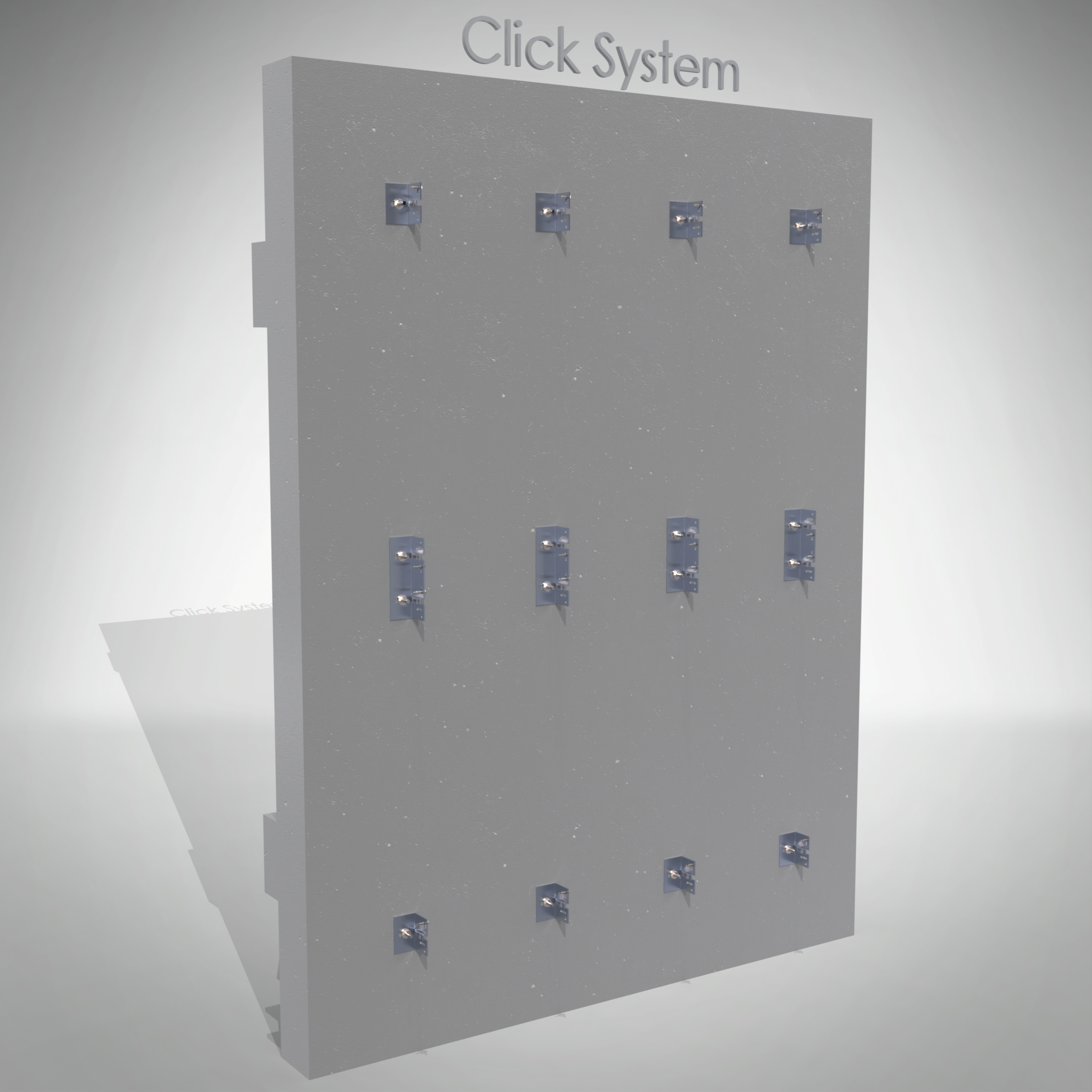

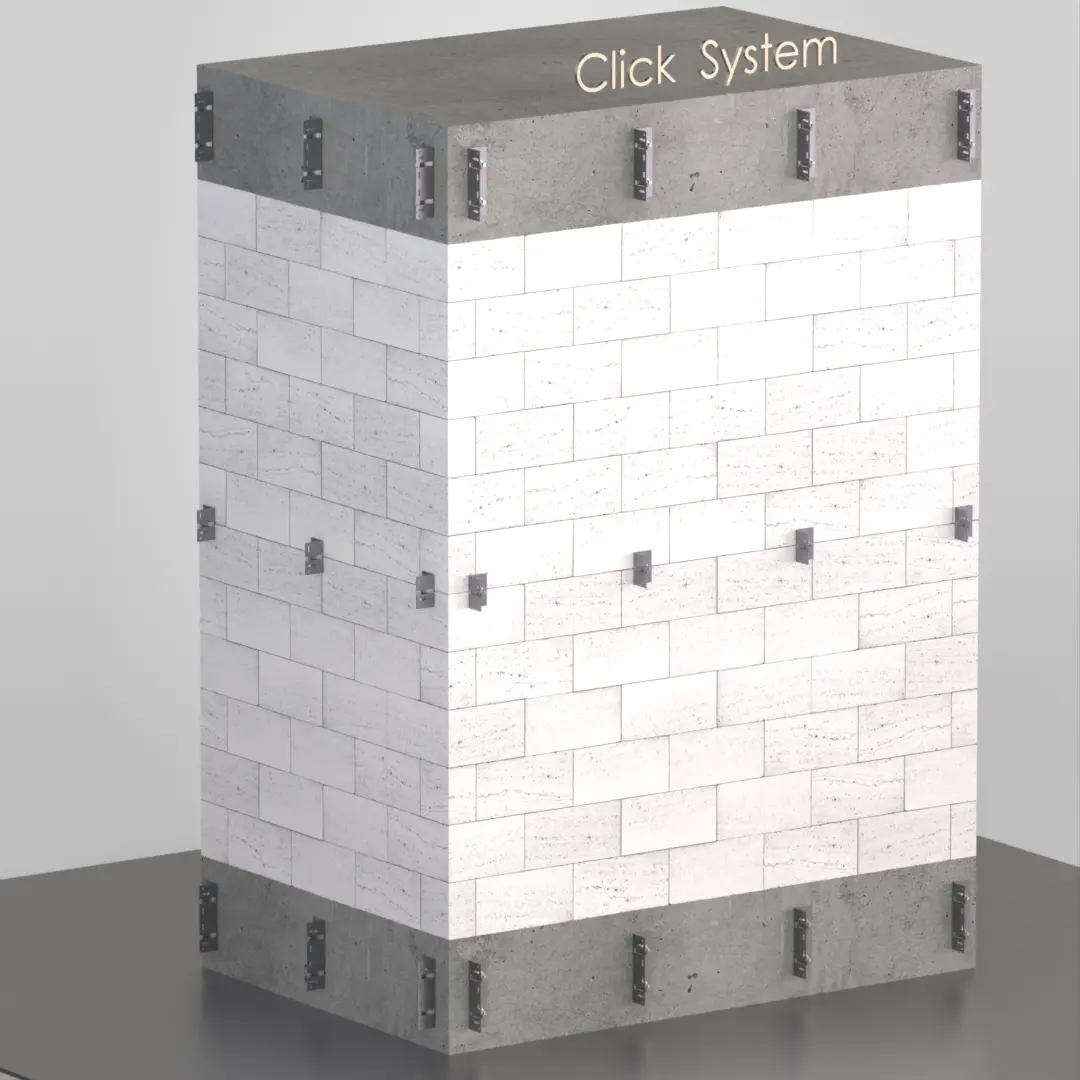

These are the system’s anchor points on the wall; they are secured to the wall using anchor bolts and attached to the vertical profiles with screws and a curved sub-component that secures the vertical profiles.

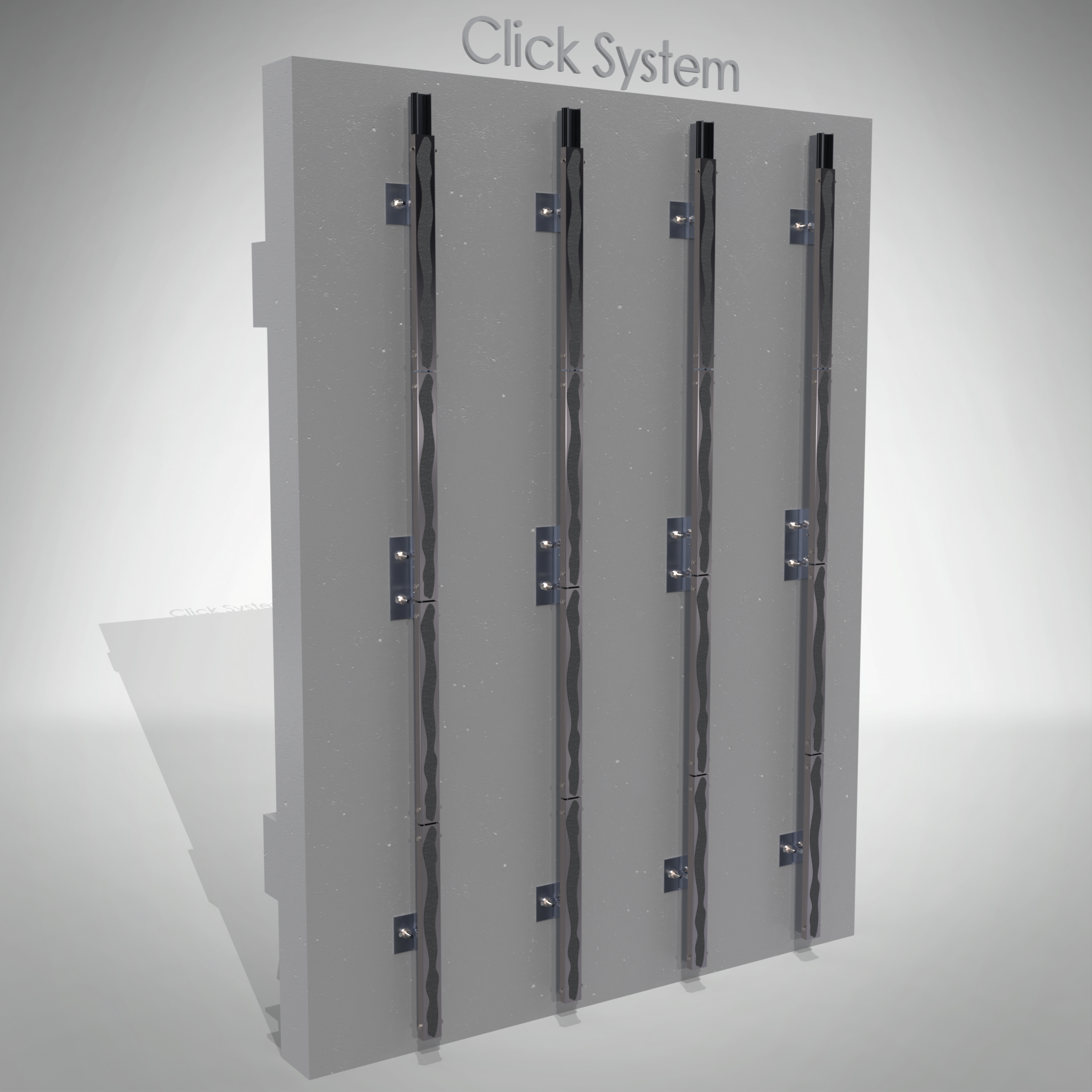

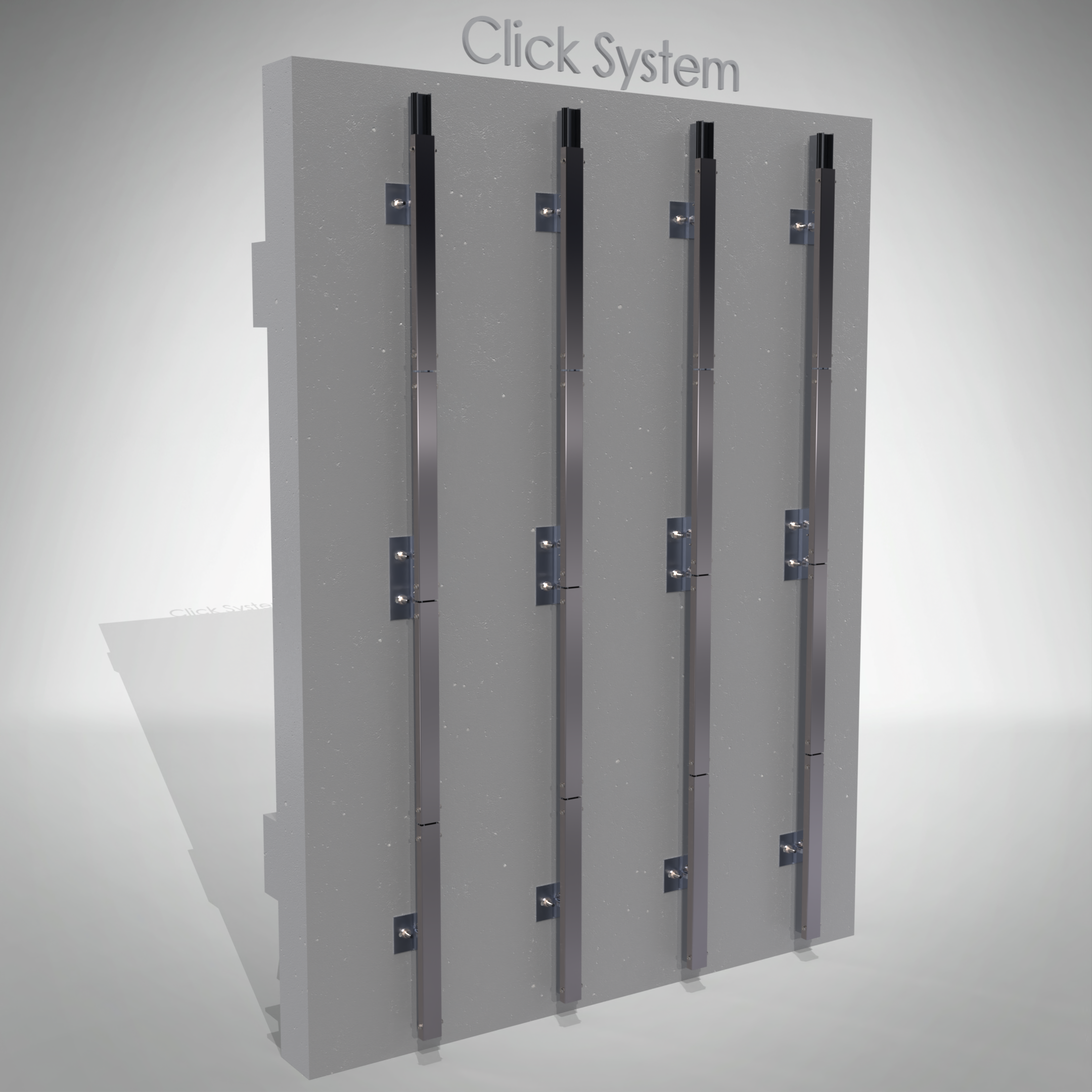

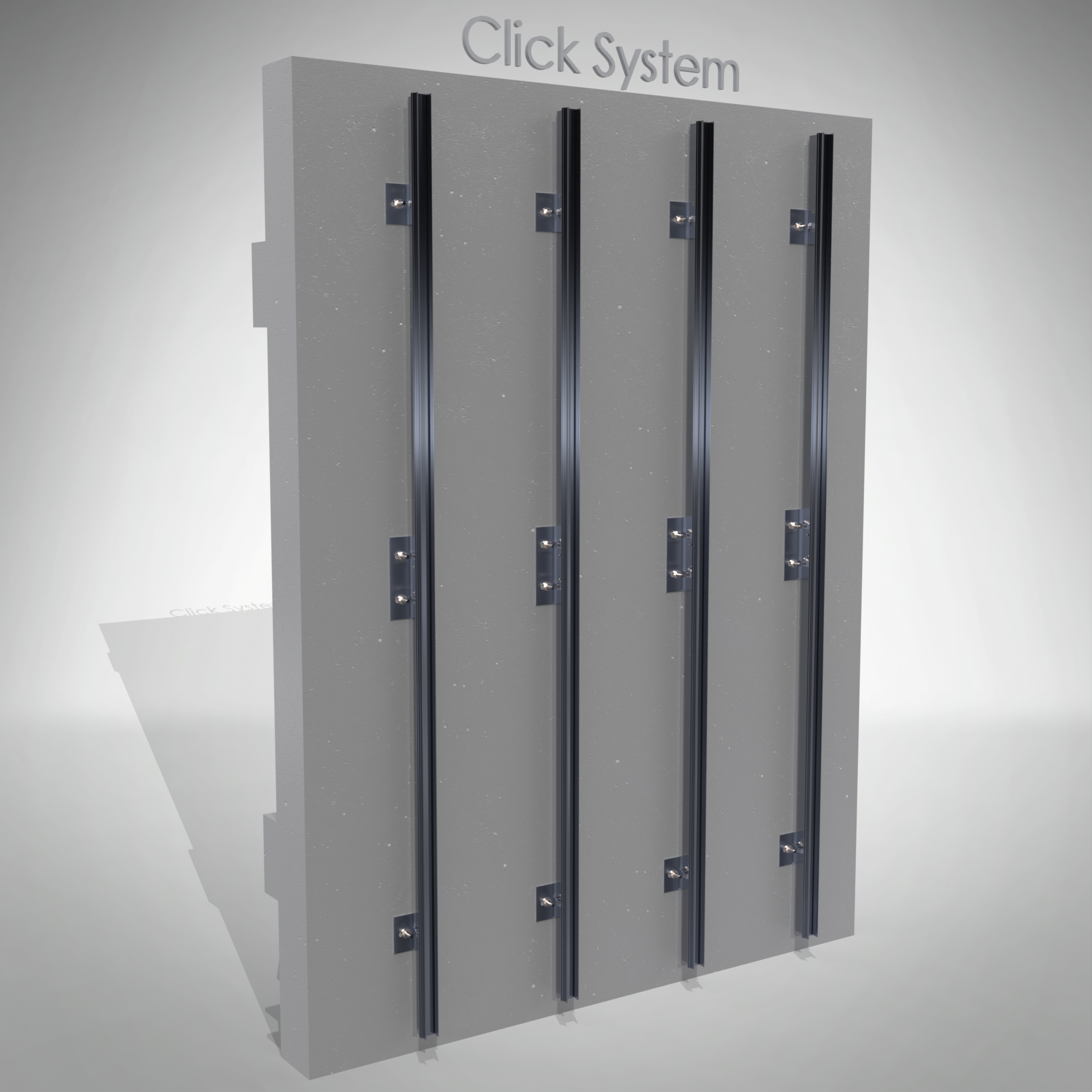

These are T-sections installed vertically and parallel to the wall surface to distribute weight evenly.
mounted on the profiles allow panels to be secured with a simple press.
Depending on the design, these are used in some cases to increase stability.
Where is the Click System used?
- On facades composed of large tiles or panels (1 x 3 m)
- For cladding the exterior facades of commercial buildings, malls, and modern villas.
- On facades that utilize rear-ventilation systems.

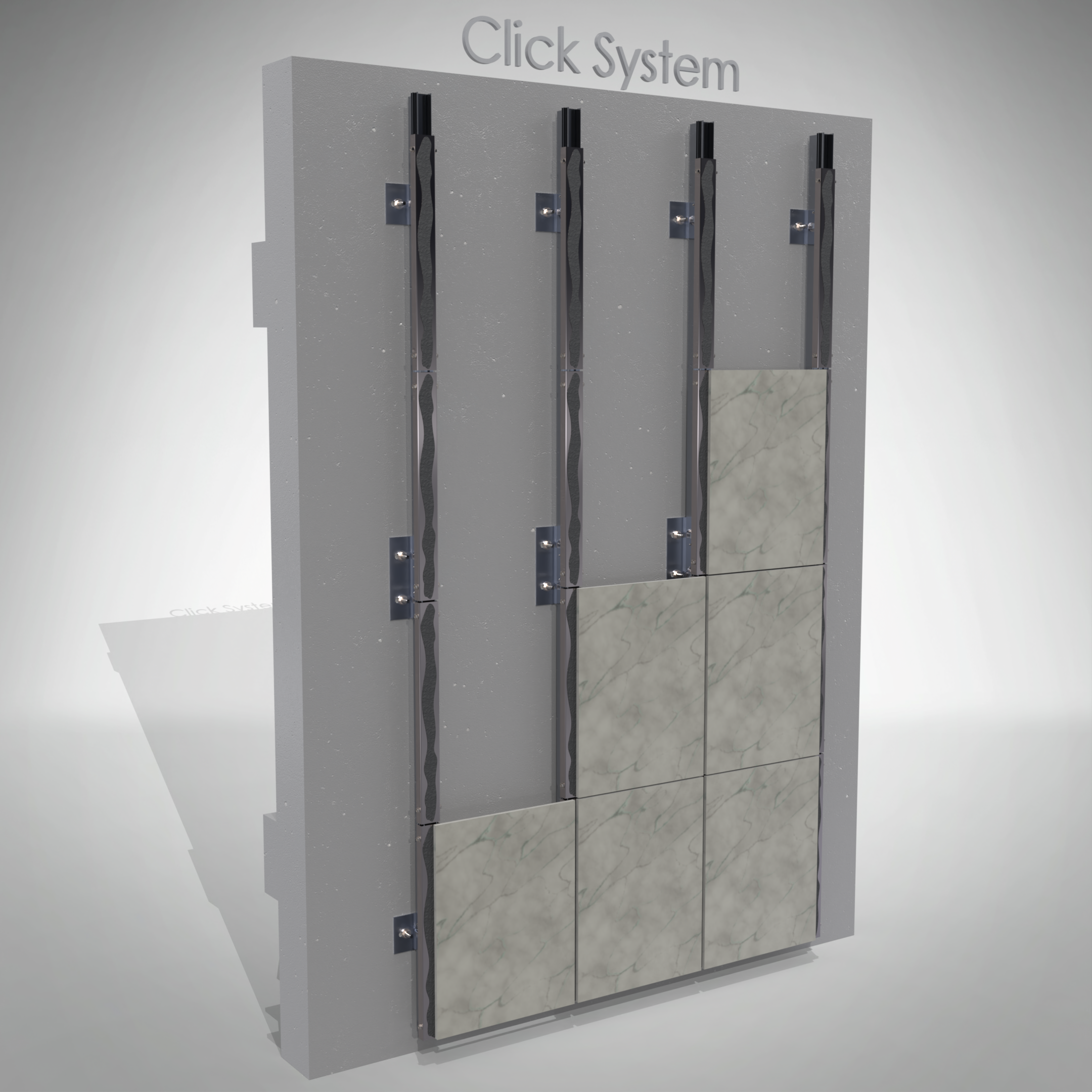

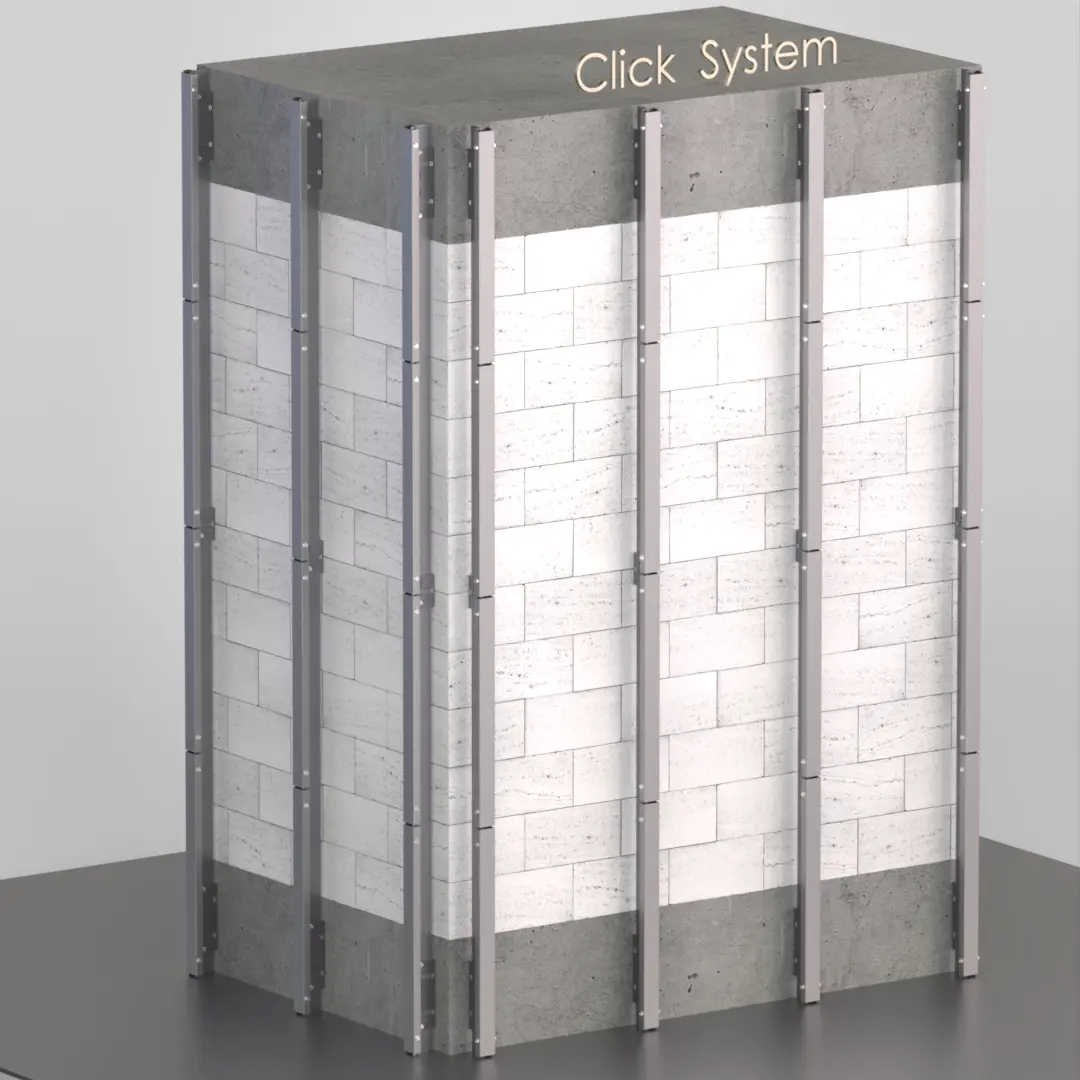

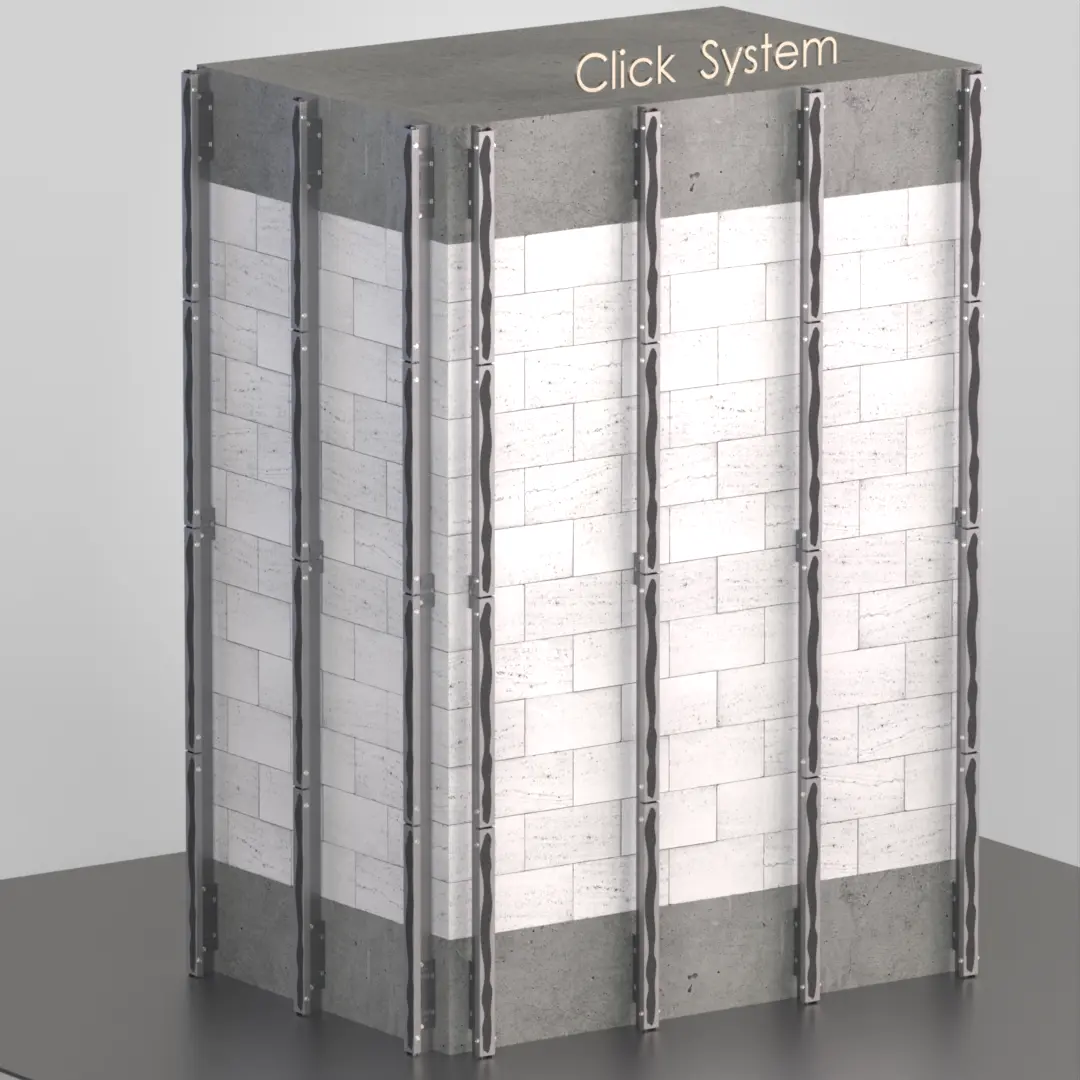

Installation Method for the Click System
Features of the Click System
- A fully concealed fastening system.
- Easy to maintain, as any panel or tile can be easily removed without breaking.
- Safe, as it reduces the risk of tiles falling compared to traditional adhesive-only installation.
- High stability due to the chemical bond (silicone).
- High resistance to weather, wind, and vibration.
- Allows for rear ventilation between the panel and the wall.
