What is G System?
G systemis a mechanical system for the concealed installation of HPL panels and various types of natural stone on building exteriors using metal clips (G sections) that are secured with special screws into holes on the back of the panels.
This system provides a durable and elegant solution for installing facades without any visible elements on the exterior surface, giving the facade a modern and robust appearance.
Components of the G System

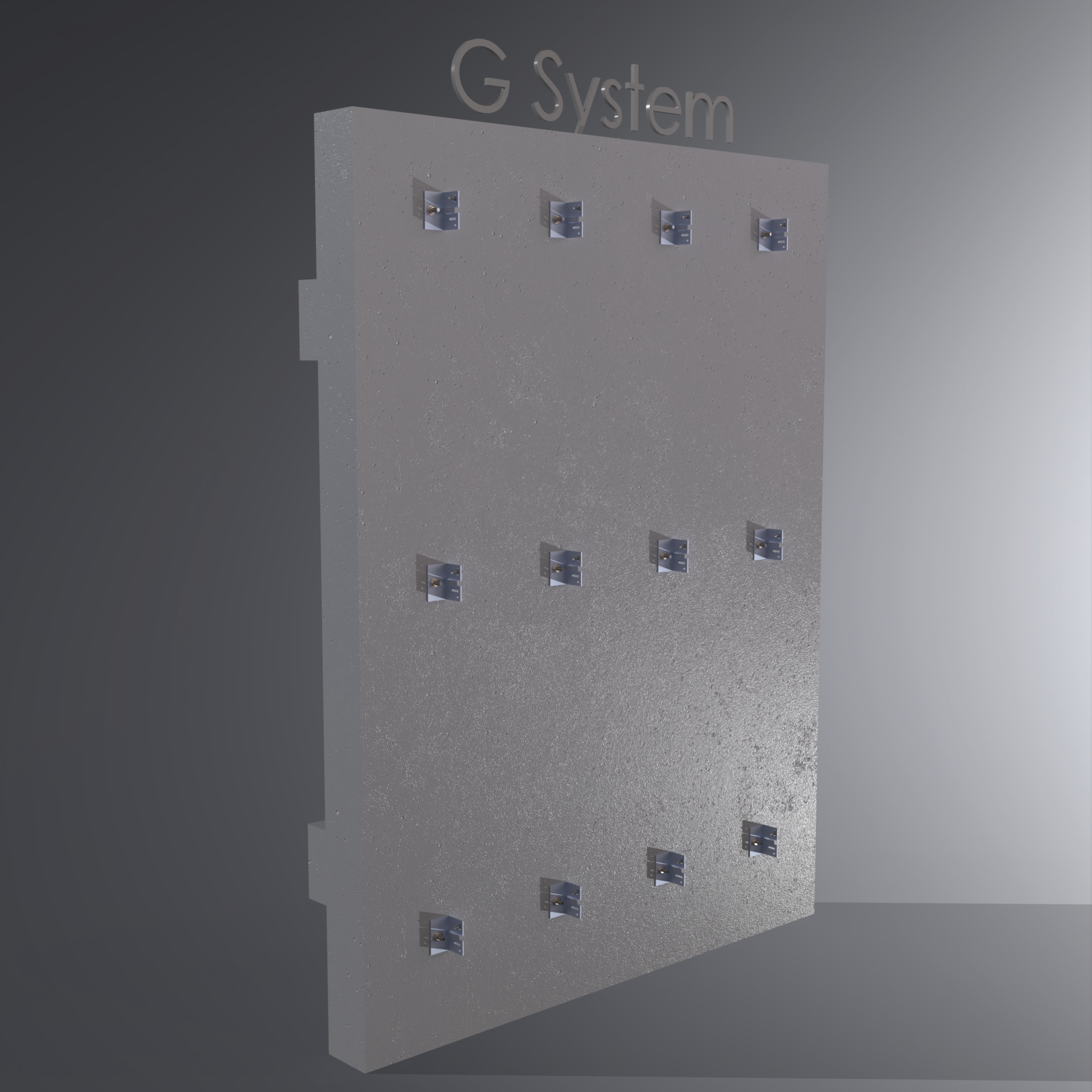

These are the system’s anchor points on the wall; they are secured to the wall using anchor bolts and attached to the vertical profiles (T-sections) with screws and a curved sub-component that secures the vertical profiles.

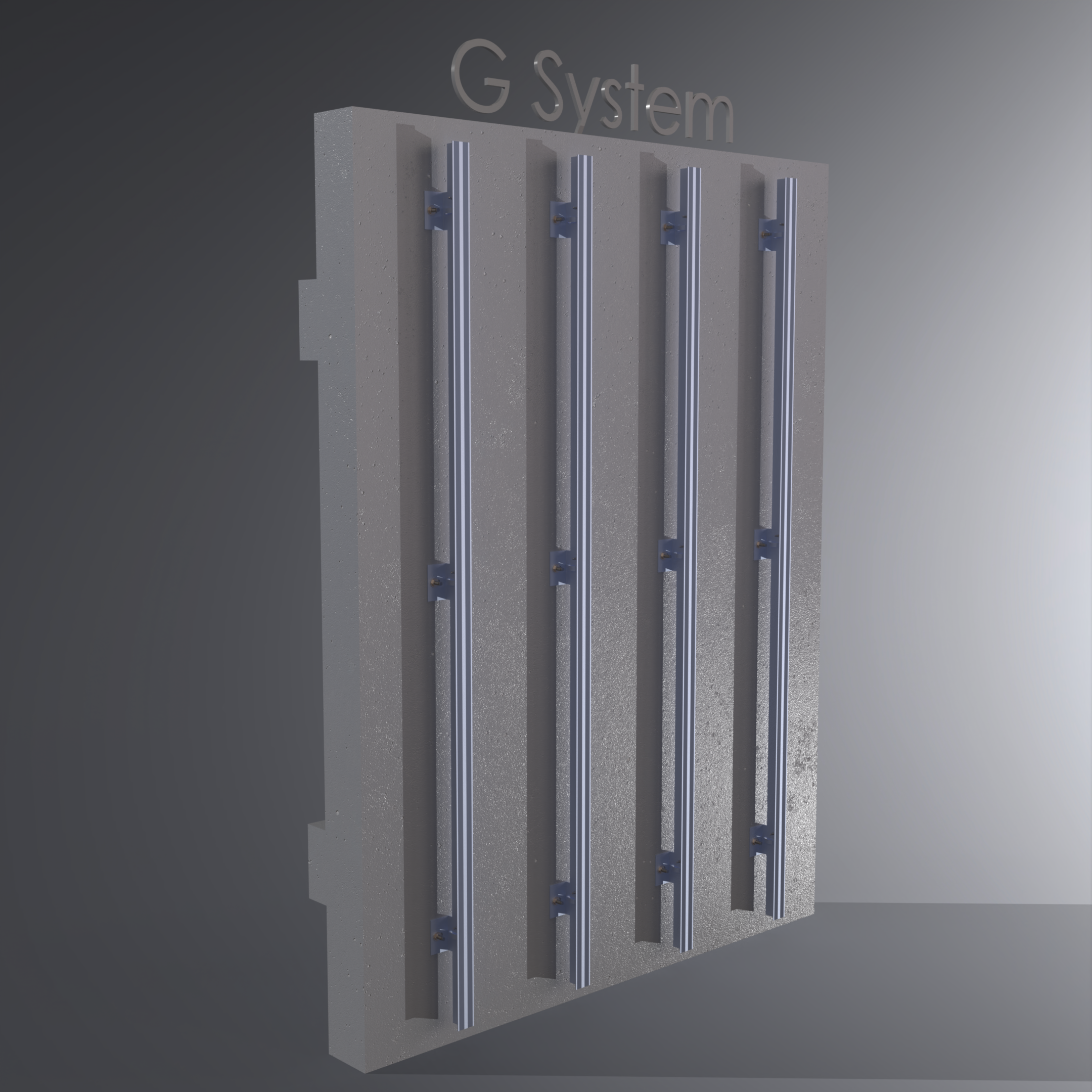

These are T-sections installed vertically and parallel to the wall surface to distribute weight evenly.

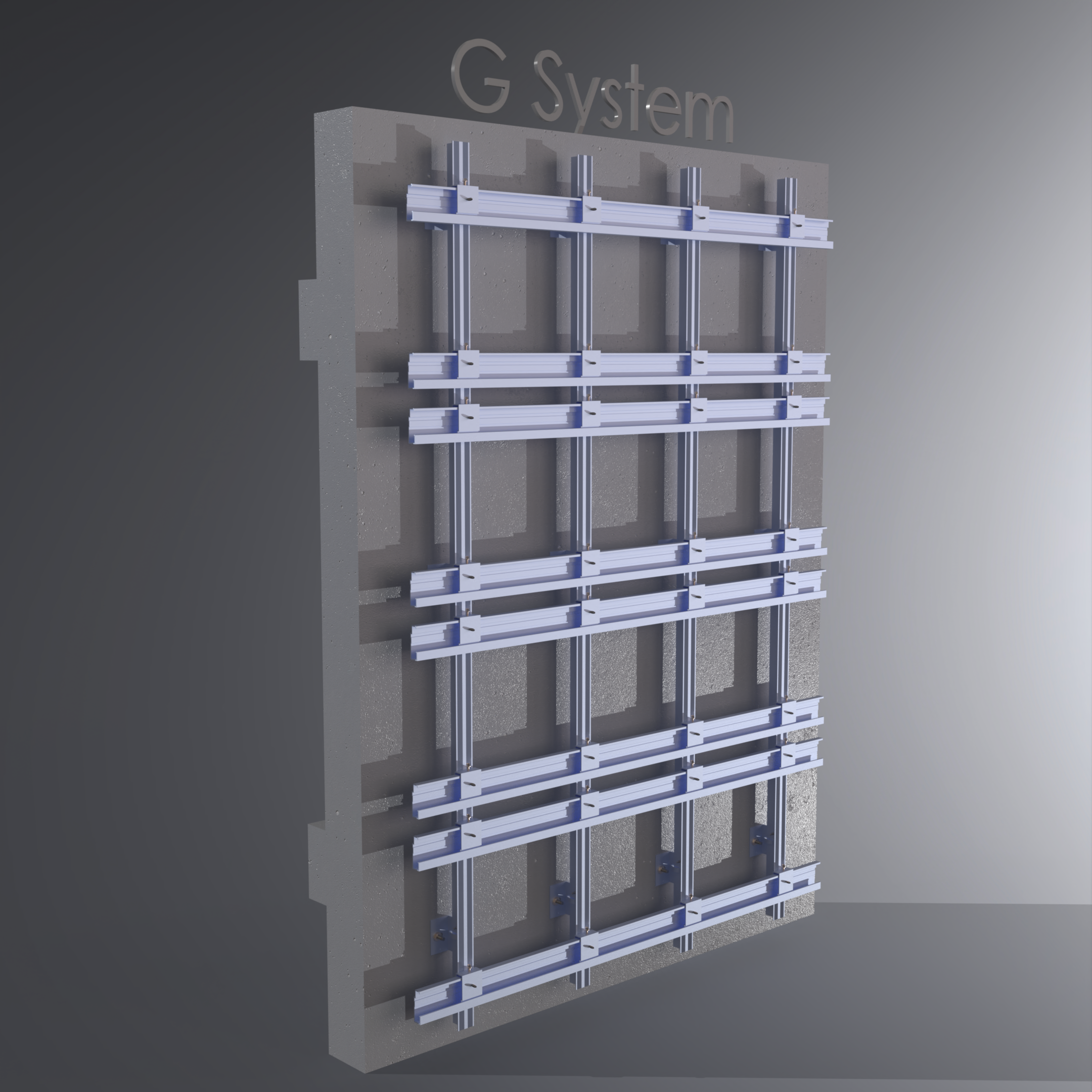

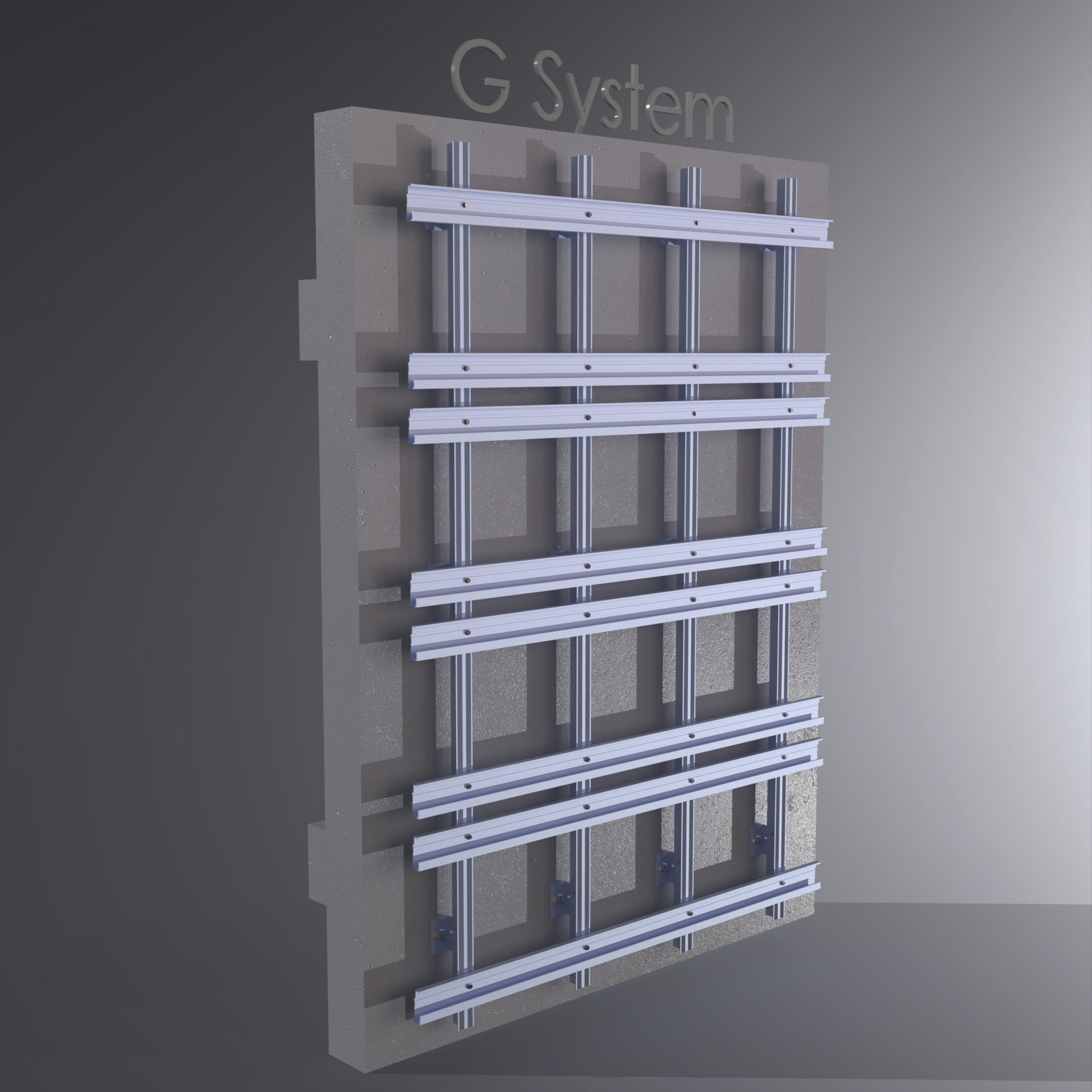

Metal rails designed to secure the pre-cut cladding panels so that the panels line up side-by-side on the rail.

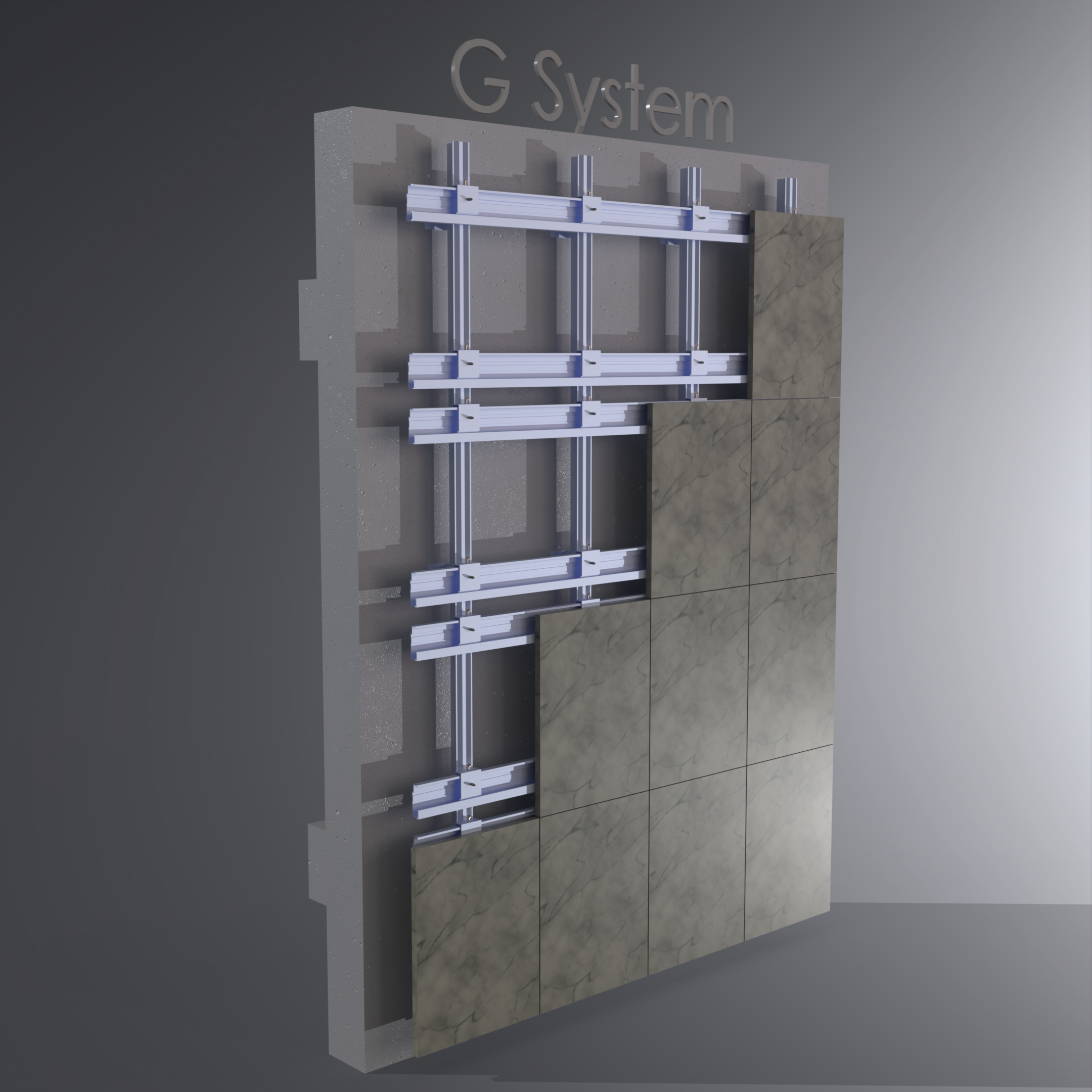

is secured to each panel with a screw on the back of the panel and then inserted into the horizontal rail.
Where is the G System used?

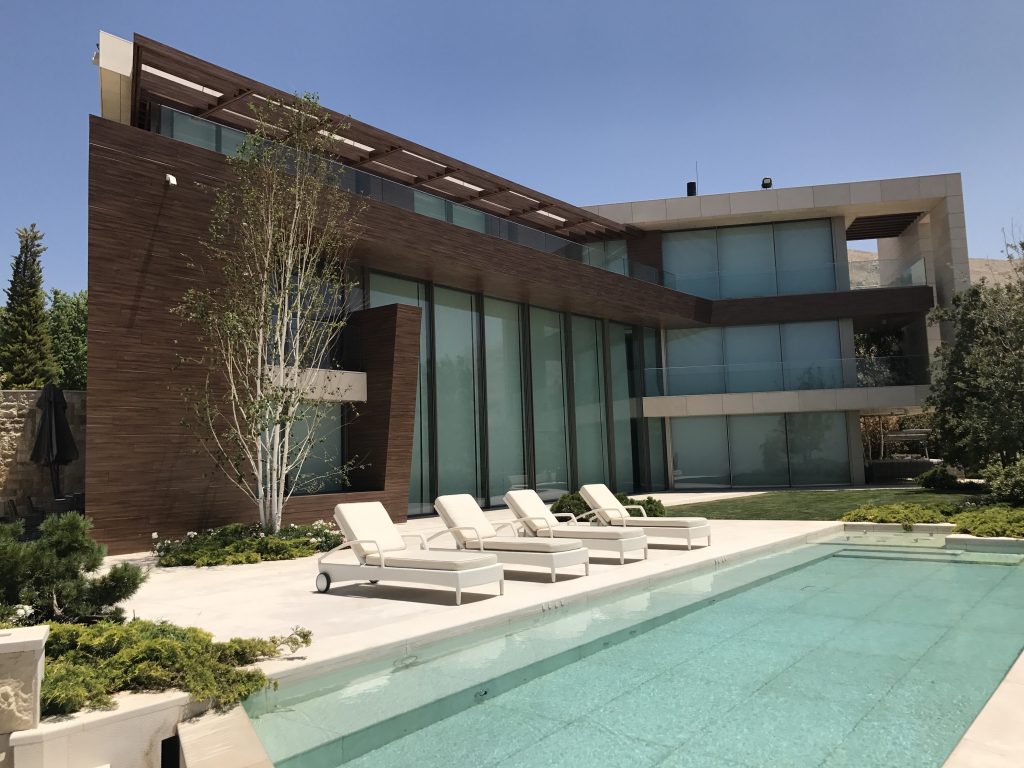

- For cladding the exterior facades of commercial buildings, malls, and modern villas.
- For the facades of government institutions that utilize rear ventilation systems.
- For cladding high-rise buildings that require strong and secure mounting systems.

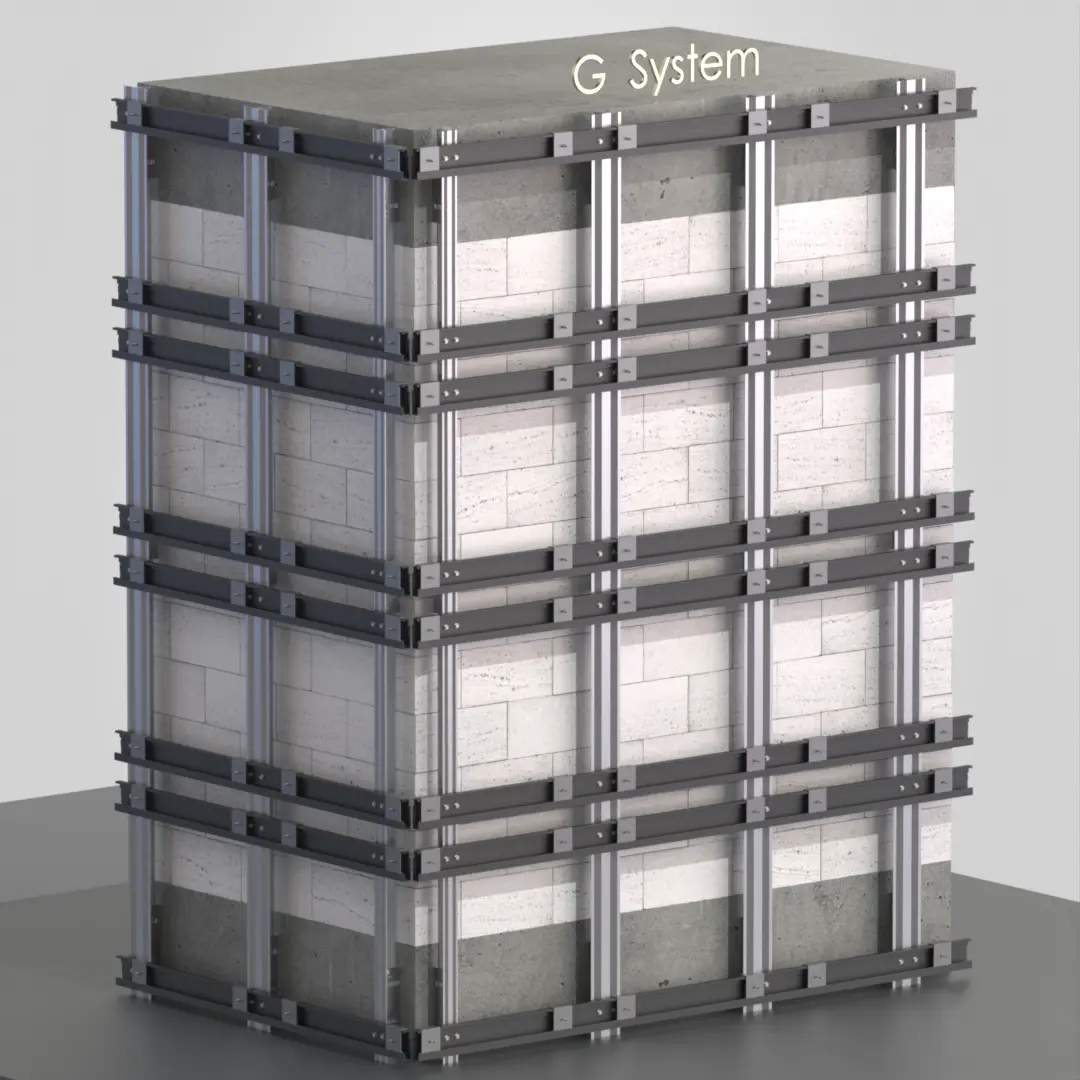

Installation Method for the G System
Features of the G System
- A fully concealed mounting system.
- Allows for expansion and contraction between summer and winter in directions specified during installation.
- High stability and excellent resistance to weather, wind, and vibration.
- Allows for rear ventilation between the panel and the wall.
- Ensures high precision in panel alignment and spacing distribution.
